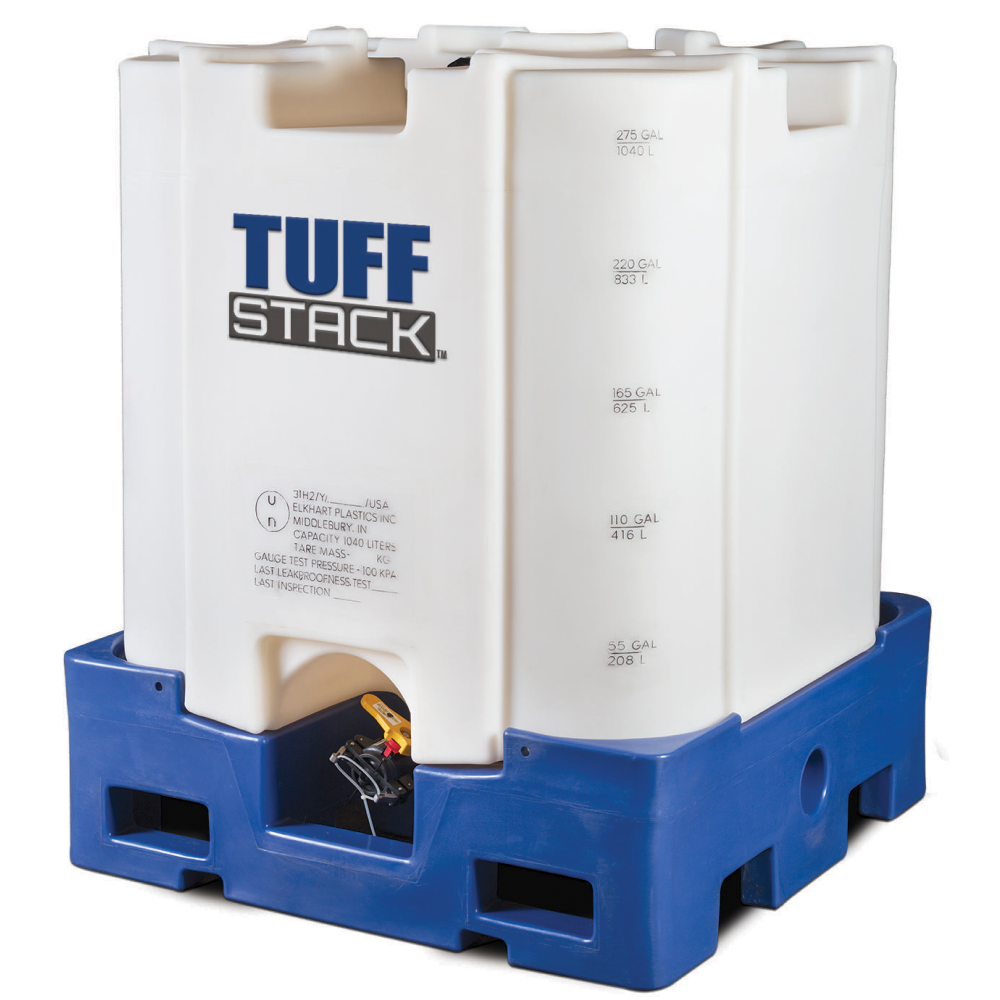

TUFF Stack® IBC Tote
TUFF Stack® IBC Tote
Reliable, Reusable IBC for Bulk Liquid Storage, Handling, and Transport
Widely used across the industrial and specialty chemical markets as rigid, returnable packaging. The Tuff Stack IBC is UN/DOT Certified Title 49 UN31H2 and rated for 1.9 specific gravity product weight.
Rigid & Reliable Strength -TUFF Stack IBC containers are rotationally molded, offering a rigid design to withstand multiple years of repeated use in agricultural and industrial environments.
Easy to Use – With inked volume markers, a sloped bottom drain, and an easily accessible valve area, the TUFF Stack is efficient and user-friendly across the value chain.
Cost Efficient & Impact Resistant – A fleet of asset IBC totes delivers a higher ROI and reduces waste compared to one-way containers like the caged IBC.
Features and Benefits
Durable IBC Totes Engineered for Demanding Applications
Quality Construction
- Manufactured in ISO 9001:2015 and 14001:2015 certified U.S. facilities
- Proudly manufactured in the USA
- FDA-compliant high-density polyethylene (HDPE) prime virgin resin
- Exceptional chemical resistance range and superior impact strength
- UN/DOT Certified – Title 49 – UN31H2
- 1.9 Specific Gravity

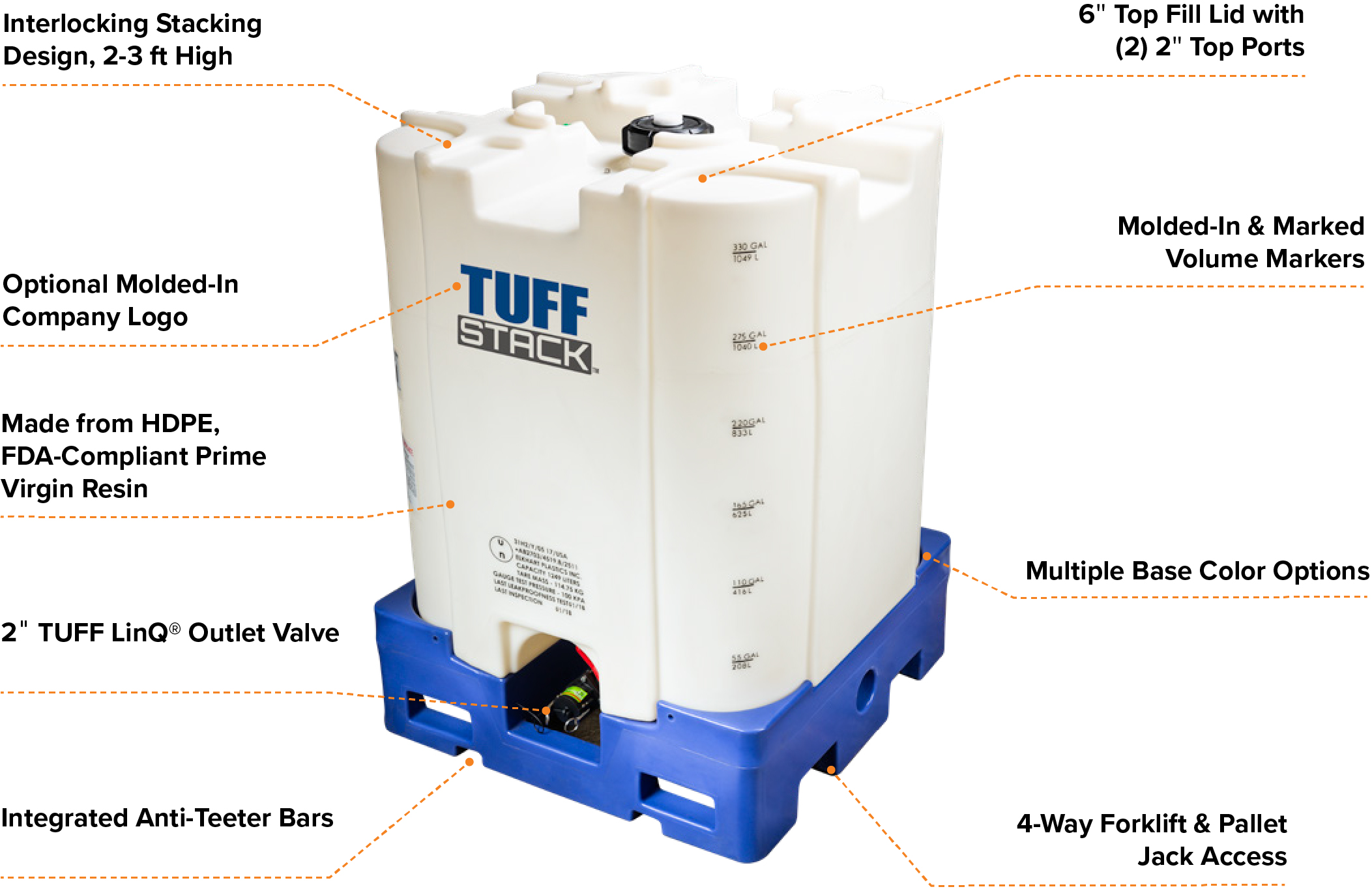

Unique Features
- Two 2″ NPS replaceable ports

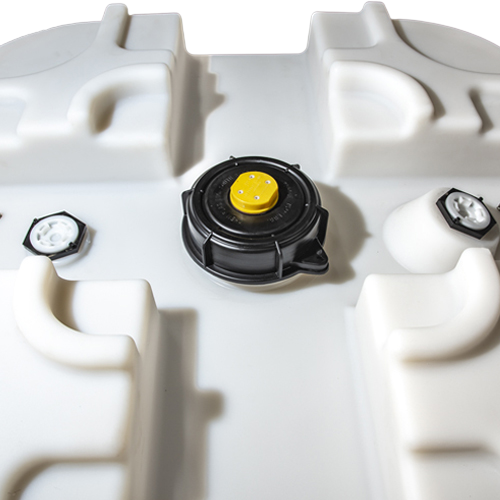

- Standard 6″ top fill lid with 2″ port

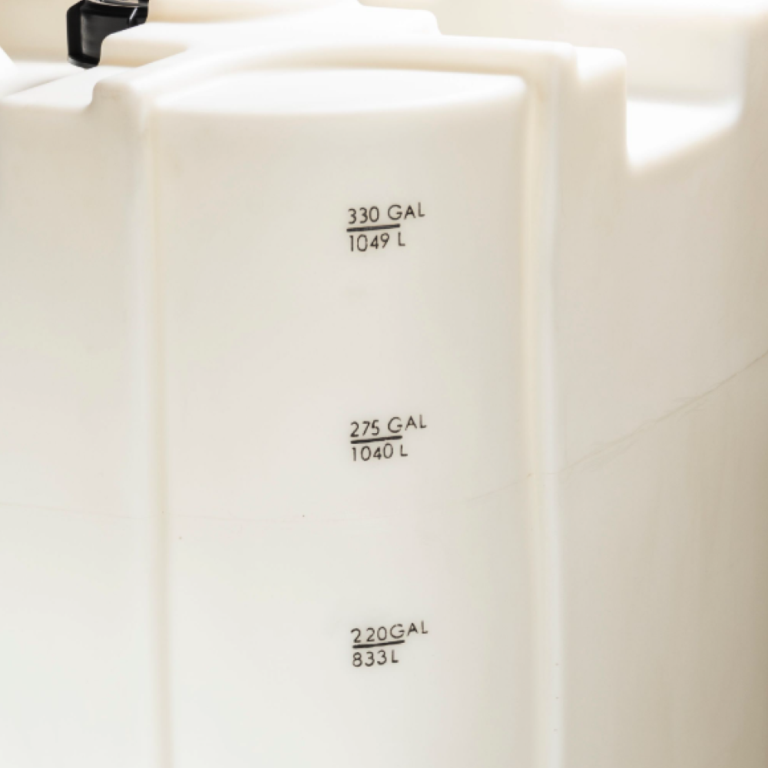

- Mold-in & marked volume markers
- Integrated anti-teeter bars
Customization Options
- Logo & product detail labeling

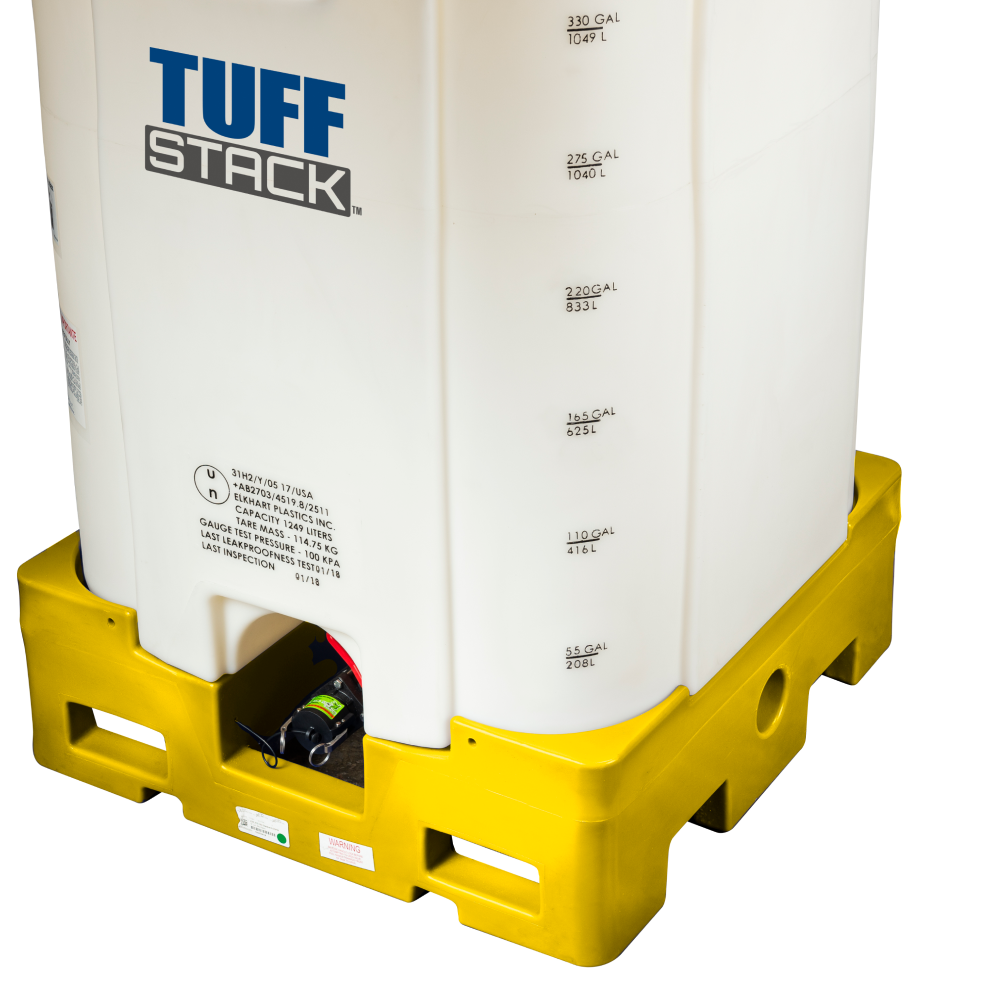

- 6+ standard base colors
- Custom base colors available
- We also offer custom-designed plastic tanks
Innovative DESIGN
Built to Stack, Store, and Perform
With a space-efficient, stackable design and durable rotomolded construction, the TUFF Stack IBC supports consistent performance across repeated use.
- Proprietary TUFF LinQ® valve
- Square tank with stackable pallet base
- Four-way forklift and two-way pallet jack entry

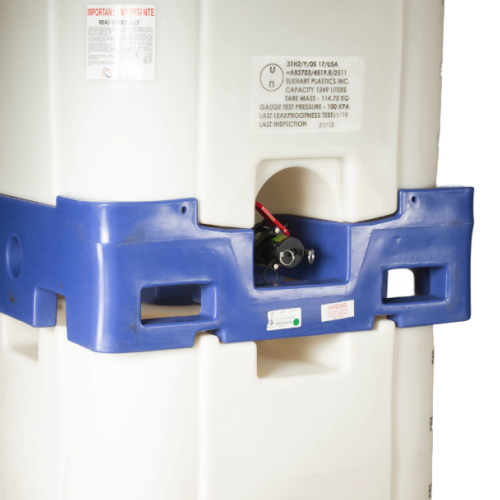

- Interlocking two to three high (on a level surface)
- Stacks with other reusable IBC brands of like design
Download Our TUFF Stack Brochure
| Model | Size (L x W x H) | Capacity | Specific Gravity | Tare WT | Certifications |
|---|---|---|---|---|---|
| 120 gallon | 45L x 45W x 36H | 120 Gallon | 1.9 | 189 lbs | UN/DOT Certified – Title 49 – UN31H1 |
| 220 gallon | 45L x 45W x 48H | 220 Gallon | 1.9 | 227 lbs | UN/DOT Certified – Title 49 – UN31H1 |
| 275 gallon | 45L x 45W x 56H | 275 Gallon | 1.9 | 244 lbs | UN/DOT Certified – Title 49 – UN31H1 |
| 330 gallon | 45L x 45W x 64H | 330 Gallon | 1.9 | 267 lbs | UN/DOT Certified – Title 49 – UN31H1 |
| Measured in gallons and liters | |||||

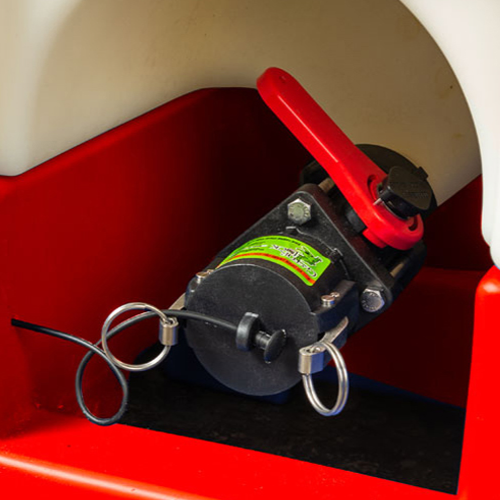

Superior Valve Design
Connect with Confidence with Our TUFF LinQ® Valve
Safely dispense regulated chemicals with the patented TUFF LinQ® outlet valve designed for a superior seal, secure connections, easier cleaning, and reduced contamination risk.
- 30% stronger connection with integrated cam-lock fitting and dust cap
- Improved sanitary design with large external threading to reduce contamination risk
- Easy-to-clean, superior seal that supports maintenance and regulatory compliance
- lexible configurations including Stubby or 2″ ball valve options with optional backflow prevention
Reference Documents and Brochures
Download documents and brochures, or see our Reference Links and Industry Associations here.
